The MAAG LGDX Gearbox: Revolutionizing Gearbox Technology with Advanced Features

In the world of industrial machinery, the MAAG® LGDX gearbox stands out as a beacon of innovation and reliability.

Engineered for maximum durability and operational flexibility, it exemplifies modern gearbox design.

This article explores the key benefits of the LGDX gearbox—from its adaptable installation options to its maintenance-friendly design—along with a real-world case study showcasing its performance in action.

Key Benefits of the LGDX Gearbox

Symmetrical and Reversible Design

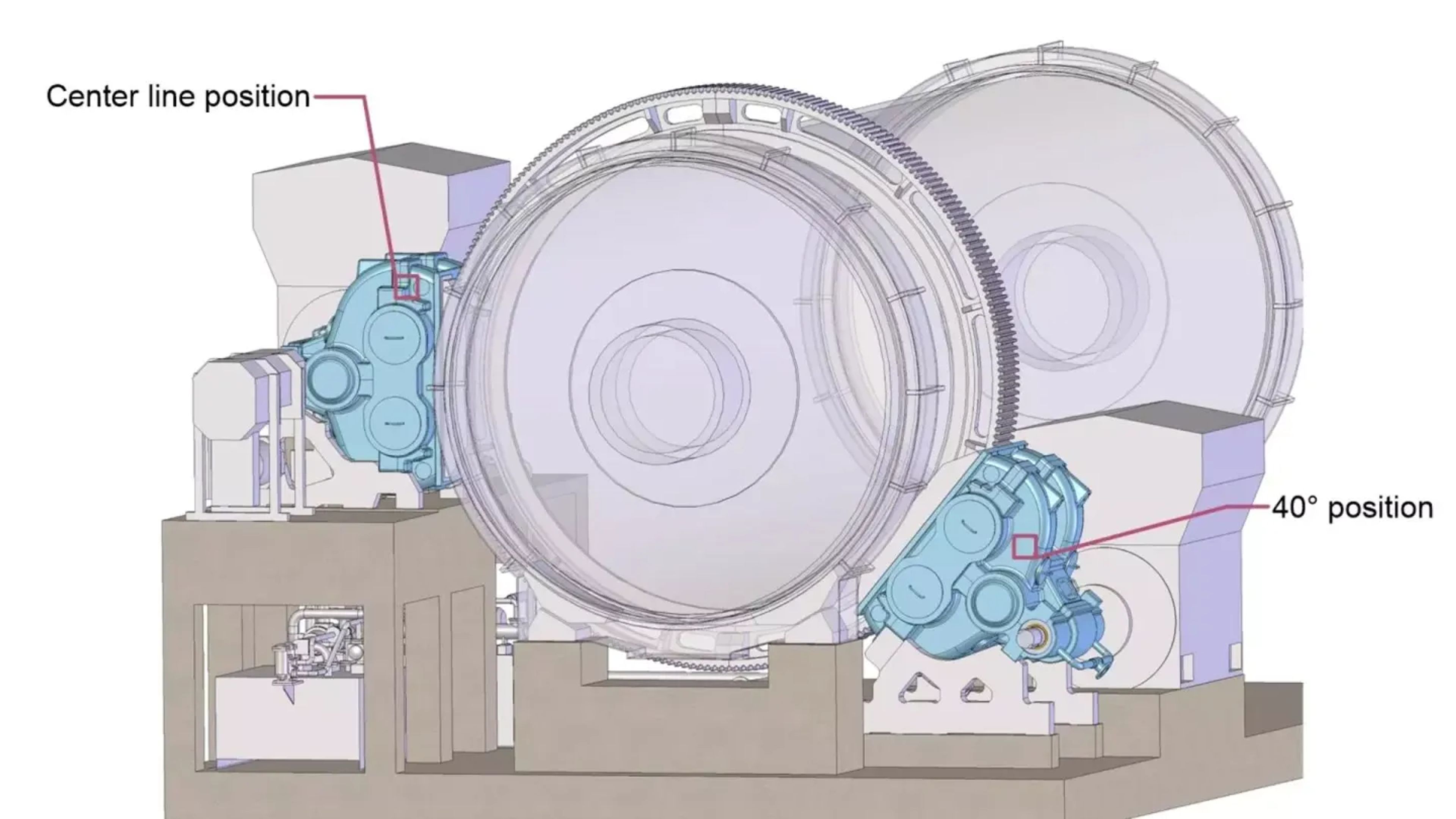

Thanks to its mirror-symmetrical housing, the LGDX gearbox can be mounted either on the centerline of the mill or offset by 40°, providing installation flexibility that can help lower civil construction costs. More importantly, this design enables reversibility, allowing the unit to be flipped for even wear across all gear surfaces—extending service life by as much as 40%.

Separated Lubrication System

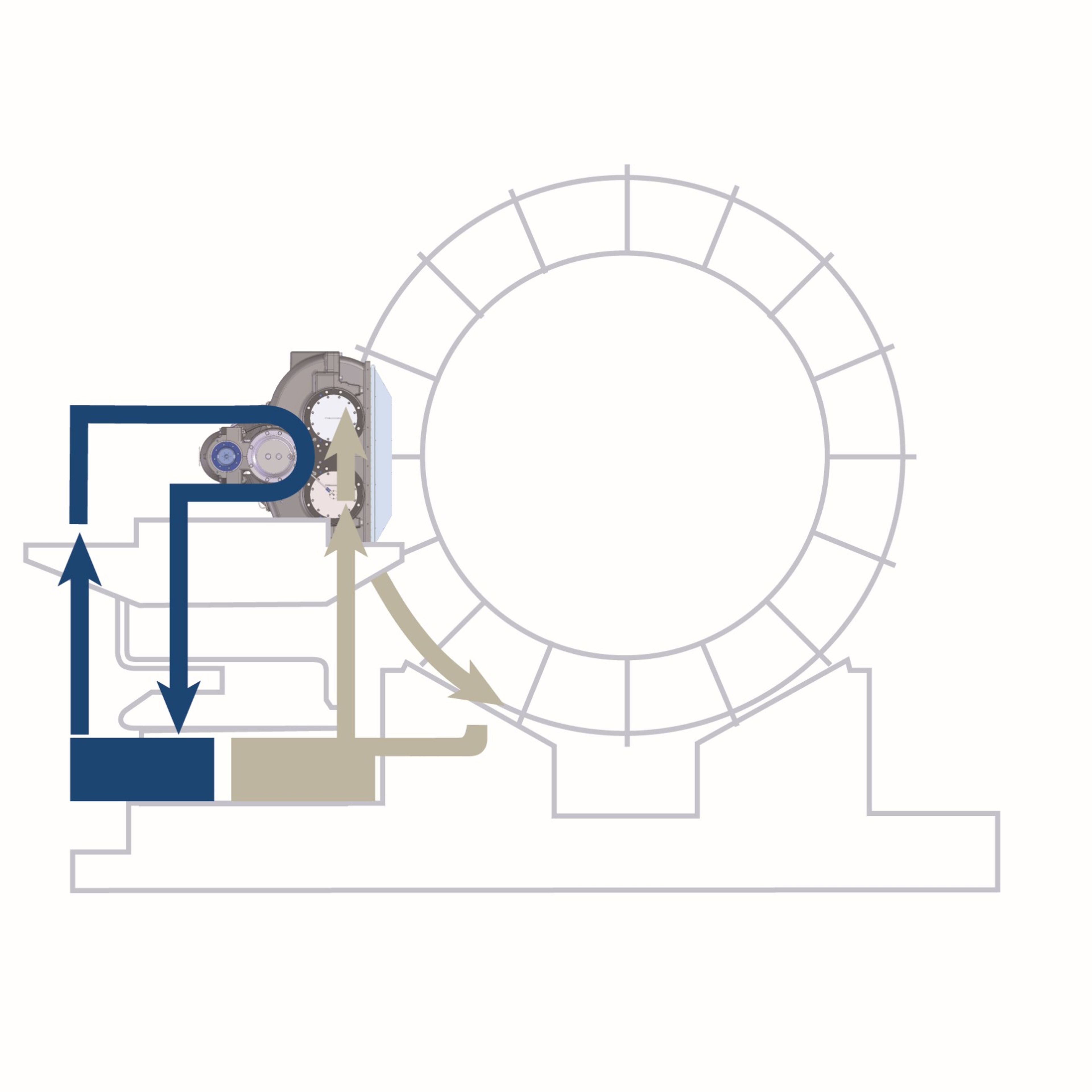

Unlike conventional gear units, the LGDX uses two isolated oil circuits—one for high-contamination areas like the girth gear and pinions, and another for internal components such as bearings and internal gears. This division significantly reduces the risk of contamination, ensuring longer-lasting parts and more stable operation over time.

Enhanced Tooth Geometry

To improve load handling and longevity, the LGDX features bidirectional tooth grinding—allowing for smooth, efficient operation in both directions. Additionally, intermediate wheels are designed with broader tooth profiles than standard configurations, ensuring better load distribution and higher mechanical endurance.

Modular and Retrofit-Friendly

The LGDX unit is designed to integrate into existing mill configurations with minimal disruption. In many cases, operators can retain their original lubrication units and adjoining components, making it a cost-effective solution for modernizations and upgrades.

Operational Efficiency and Cost Savings

Although the initial investment is marginally higher (about 10%), long-term savings are substantial. Spare part needs are reduced, and service interruptions are less frequent. When rotating components do require replacement, they typically cost just 70% of a new gearbox—compared to full replacement in many alternative systems.

Ease of Maintenance

Maintenance activities are streamlined thanks to a clever design that includes lightweight, single-person-removable bearing covers and quick access points to critical components. This reduces both downtime and manpower requirements, increasing overall plant availability.

Proven in the Field: LGDX in Real-World Use

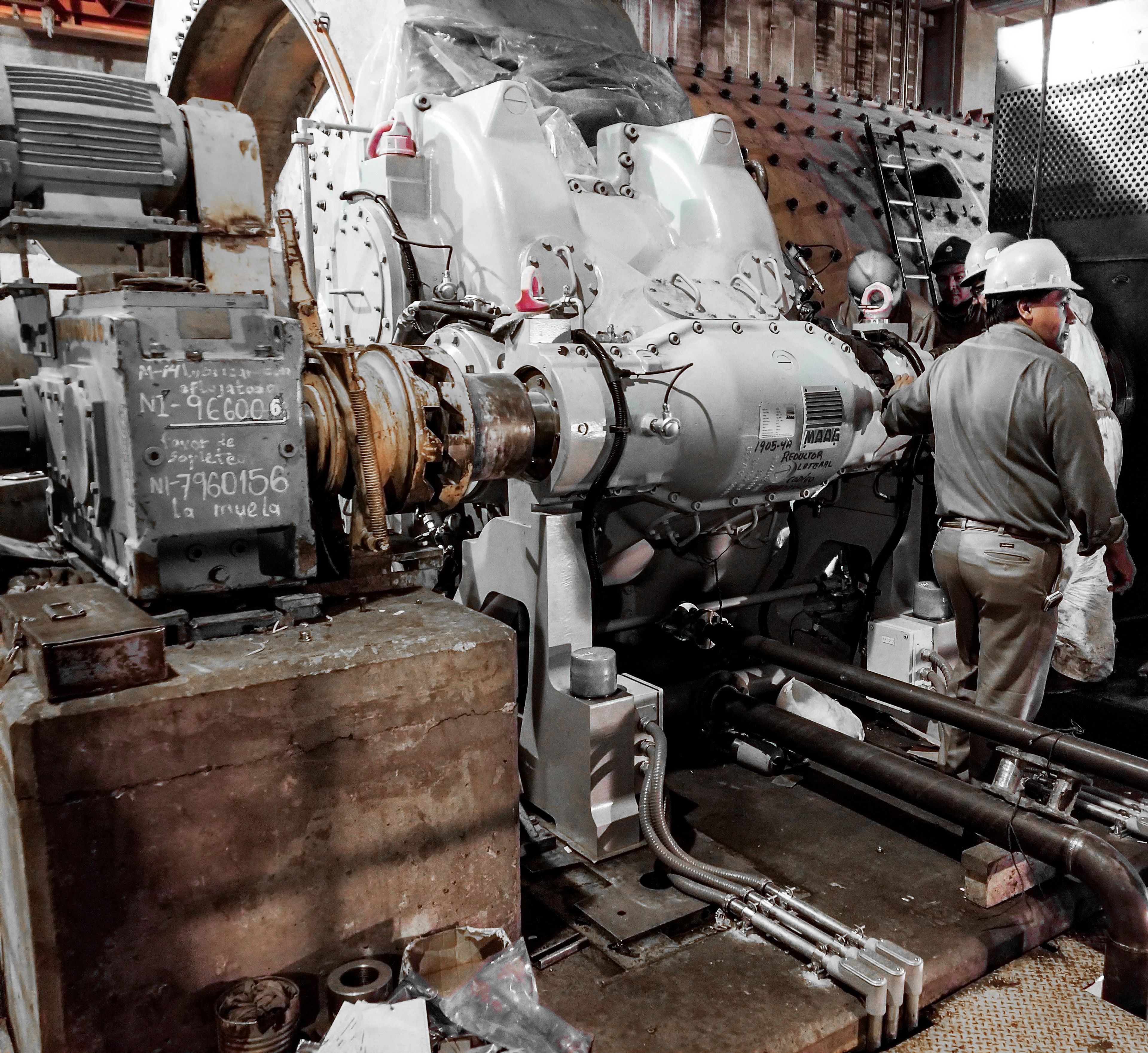

The true potential of the LGDX gearbox is best illustrated through field deployment. In one notable project, the LGDX lateral drive was installed on a ball mill, where it demonstrated excellent reliability under high-stress conditions and enabled a significant reduction in maintenance interventions.

“With the MAAG LGDX gear unit and a minimum of effort and down time for the gear exchange, you bring your old mill drive system back to state of the art.”

This testimonial speaks to the ease of retrofitting and the immediate performance improvements achieved with the LGDX solution. The case study highlights how modern gearbox technology can revitalize aging infrastructure with minimal disruption and long-term cost benefits.

Read the full case study

Conclusion

The LGDX Gearbox by MAAG Gear is more than a technical innovation—it’s a smart investment in operational continuity, flexibility, and long-term savings. By combining advanced engineering with real-world reliability, the LGDX sets a new benchmark for lateral gear units in heavy-duty applications.

Whether you're upgrading legacy equipment or specifying new machinery, the LGDX delivers performance you can trust.

Learn more about the MAAG® LGDX Gear Unit
